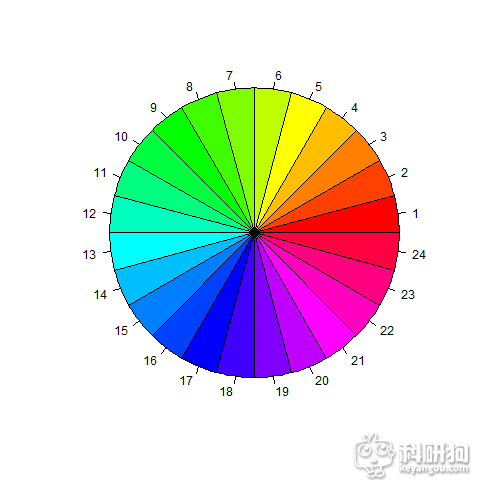

png(filename = "E:/R5-1.png")
pie(rep(1, 24), col = rainbow(24), radius = 0.9)
dev.off()

得到如下图片：

2.

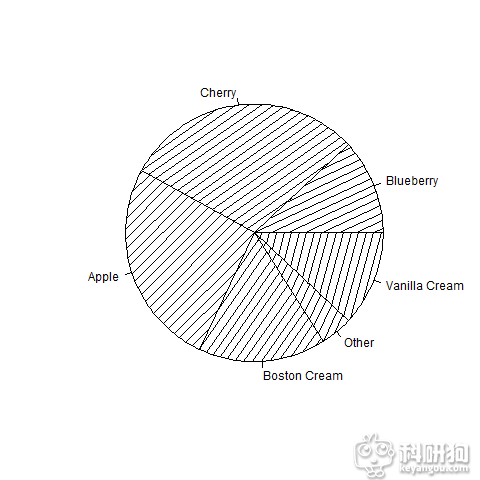

png(filename = "E:/R5-2.png")
pie.sales <- c(0.12, 0.3, 0.26, 0.16, 0.04, 0.12)
names(pie.sales) <- c("Blueberry", "Cherry",
                      "Apple", "Boston Cream", "Other", "Vanilla Cream")
pie(pie.sales, density = 10, angle = 15 + 10 * 1:6)
dev.off();

3.

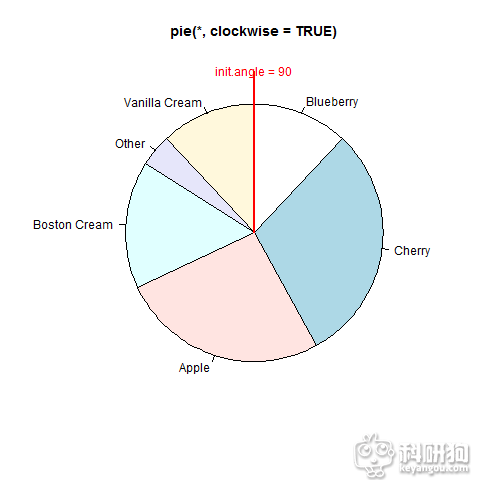

png(filename = "E:/R5-3.png")
pie.sales <- c(0.12, 0.3, 0.26, 0.16, 0.04, 0.12)
names(pie.sales) <- c("Blueberry", "Cherry",
                      "Apple", "Boston Cream", "Other", "Vanilla Cream")
pie(pie.sales, clockwise = TRUE, main = "pie(*, clockwise = TRUE)")
segments(0, 0, 0, 1, col = "red", lwd = 2)
text(0, 1, "init.angle = 90", col = "red")
dev.off();

4.

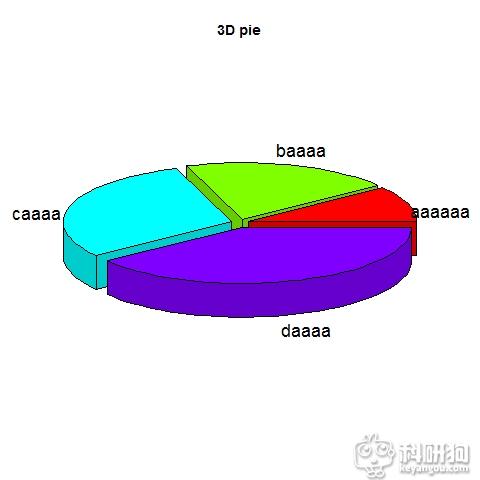

png(filename = "E:/R5-4.png")
library('plotrix')
a<-c(23,45,67,89)
b<-c('aaaaaa','baaaa','caaaa','daaaa')
pie3D(a,labels=b,height=0.1,explode=0.05,main='3D pie')
dev.off()

5. 首先用 install.packages("VennDiagram")来安装下包

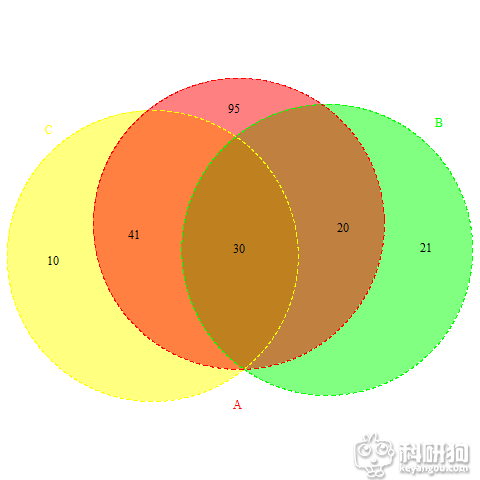

png(filename="E:/R5-5.png")
library(VennDiagram)
A = 5:190
B = c(121:170,300:320)
C = c(20:40,141:200)
Len_A<-length(A)
Len_B<-length(B)
Len_C<-length(C)
Len_AB<-length(intersect(A,B))
Len_BC<-length(intersect(B,C))
Len_AC<-length(intersect(A,C))
Len_ABC<-length(intersect(intersect(A,B),C))
a<-venn.diagram(list(A=A,B=B,C=C),filename=NULL,lwd=1,lty=2,col=c('red','green','yellow'),fill=c('red','green','yellow'),cat.col=c('red','green','yellow'),rotation.degree=2,reverse=TRUE)
grid.draw(a)
dev.off()
