R2-02第一期ggplot散点图折线图

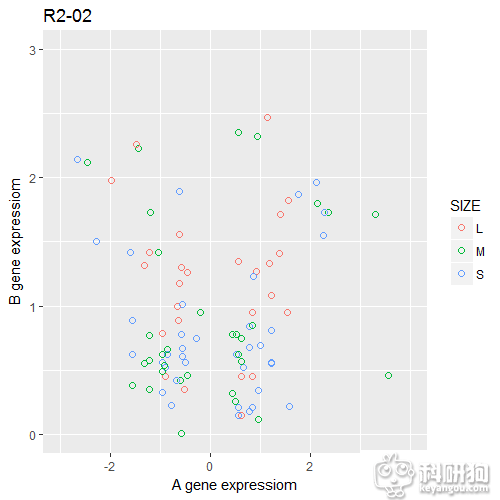

ggplot画散点图，用max和min将坐标的最大值和最小值取出，用ceiling函数向上取整
library(ggplot2)
mydata<- read.csv("E:/data/R2-1-1.csv",header=TRUE)
xmax <- ceiling(max(mydata$A))
xmin <- ceiling(min(mydata$A))-1
ymax <- ceiling(max(mydata$B))
ymin <- ceiling(min(mydata$B))-1
ggplot(mydata,aes(A,B))+
geom_point(aes(color=SIZE),size=2,shape=1)+
ggtitle("R2-02")+
xlab("A gene expressiom")+
ylab("B gene expressiom")+
xlim(xmin,xmax)+
ylim(ymin,ymax)
#或者以下的代码
ggplot(mydata,aes(x=A,y=B,color=SIZE))+
geom_point(size=2,shape=1)+
labs(xlib="A gene expression",ylib="B gene expression",title="R2-02")

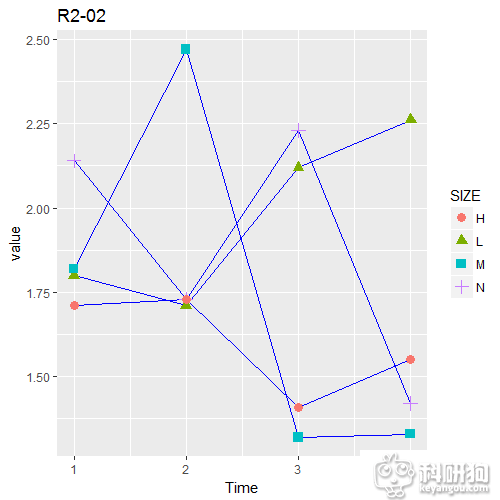

mydata<- read.csv("E:/data/R2-1-2.csv",header=TRUE)
ggplot(mydata,aes(Time,value,color=SIZE,shape=SIZE))+
geom_line(color="blue")+
geom_point(size=3)+
ggtitle("R2-02")+
xlab("Time")+
ylab("value")
