install.packages("maptools")
install.packages("plyr")
library(maptools)
library(ggplot2)
library(rgdal)
library(plyr)


mytheme_map <- theme(panel.grid = element_blank(),
    panel.background = element_blank(),
    axis.text = element_blank(),
    axis.ticks = element_blank(),
    axis.title = element_blank())

setwd('D:/R-LMT/9')

china_map<-readShapePoly("bou2_4p.shp")

x<-china_map@data
xs<-data.frame(x,id=seq(0:924)-1)
china_map1<-fortify(china_map)
china_map_data<-join(china_map1,xs,type='full')

BJ<-subset(china_map_data,NAME=="北京市")

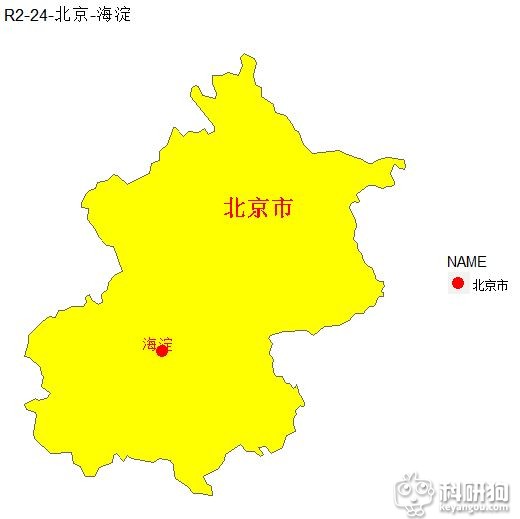

p<-ggplot(BJ,aes(x=long,y=lat,group=group,fill=NAME))+geom_polygon(fill="yellow" )+geom_path(colour = "grey40")+ggtitle("R2-24-北京-海淀")+geom_text(mapping = aes(x=116.7,y=40.5,label=NAME),color="red",cex=6)+geom_point(aes(x=116.17,y=39.97),colour="red",size=4,pch=19)+annotate("text",x=116.15,y=40,color="red",label="海淀")+ mytheme_map
p

install.packages("mapproj")
library(mapproj)
merge_data<-join(china_map1,xs,type = "full")
pop<-read.csv("R2-9-1.csv")
merge_xs<-join(merge_data, pop, by = "NAME", type = "full")
mytheme<-theme(
  panel.background = element_blank(),
  panel.grid = element_blank(),
  axis.text = element_blank(),
  axis.ticks = element_blank(),
  axis.title = element_blank(),
  legend.position = c(1.0,0.5))
ggplot(merge_xs,
       aes(x = long, y = lat, group = group,fill=pop)
       )+
  geom_polygon()+
  scale_fill_gradient(low = "white",high = "red")+
  geom_path(colour = "green")+

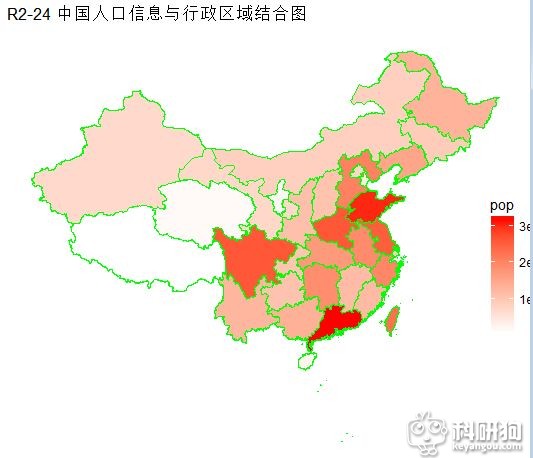

  ggtitle("R2-24 中国人口信息与行政区域结合图")+mytheme
